| PERFORMANCE |
| Processor
|
Intel® Core™ i5-14400F, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
|
| Graphics |
NVIDIA® GeForce RTX™ 4060 8GB GDDR6 242 AI TOPS
|
| Chipset |
Intel® B660 Chipset
|
| Memory
|
2x 16GB UDIMM DDR5-5600
|
| Memory Slots |
Four DDR5 UDIMM slots, dual-channel capable
|
| Max Memory
|
Up to 64GB DDR5-5600
|
| Storage |
1TB SSD M.2 2280 PCIe® 4.0×4 NVMe®
|
| Storage Support
|
Up to five drives, 2x 3.5″ HDD + 1x M.2 SSD + 1x open M.2 SSD + 1x open 2.5 HDD Bay • 3.5″ HDD up to 2TB each • M.2 SSD up to 2TB each
|
| Card Reader |
None
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC897-Q codec
|
| Speakers |
No speakers
|
| Power Supply |
500W 85%
|
| DESIGN |
| Keyboard |
USB Calliope Keyboard, Black, English / French (CA)
|
| Mouse |
USB Calliope Mouse, Black
|
| Optional Bay |
2.5” HDD bay
|
| Expansion Slots |
- One PCIe® 4.0 x16
- One PCIe® 3.0 x4
- Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color |
Storm Grey
|
| System Lighting |
Legion Lighting + Internal Ambient Lighting
|
| Chassis |
Transparent Cover
|
| Cooler |
M.2 SSD DECO Mylar® Heatsink + 65W 80MM-Fan
|
| System Fan |
1x Rear with ARGB + 2x Front with ARGB
|
| Carry Handle |
Carry Handle
|
| Form Factor |
Tower (26L)
|
| Dimensions (WxDxH)
|
205 x 396.9 x 425.9 mm (8.1 x 15.62 x 16.76 inches)
|
| Weight
|
Around 14 kg (30.86 lbs)
|
| CONNECTIVITY |
| Ethernet |
2.5GbE RTL8125BG
|
| WLAN + Bluetooth |
Wi-Fi® 6E, 802.11ax 2×2 + BT5.3
|
| Top Ports |
- 2x USB 3.2 Gen 1
- 1x headphone (3.5mm)
- 1x microphone (3.5mm)
|

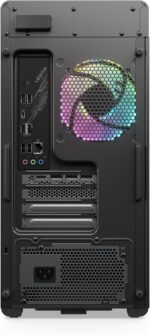

| Rear Ports |
- 1x USB-C® 3.2 Gen 2 (support data transfer and 5V@3A charging)
- 2x USB 3.2 Gen 1
- 4x USB 2.0
- 1x Ethernet (RJ-45)
- 1x Lighting switch
- 1x power connector
- 3x audio connector (3.5mm)
|
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 integrated in chipset
|
| SERVICE |
| Base Warranty |
1-year, Mail-in
|
| Included Upgrade |
None
|
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- ErP Lot 3
- RoHS compliant
|
| SOFTWARE |
| Operating System |
Windows® 11 Home, French / English
|
| Bundled Software |
None
|
